VUmc - Quench piping MRI
When an MRI scanner has to make an emergency stop, a process called quenching is activated. In this process a sudden loss of absolute zero temperature is activated in the magnet coils. This will cease the coils to be super conducting and they become resistive instead, thus eliminating the magnetic field.

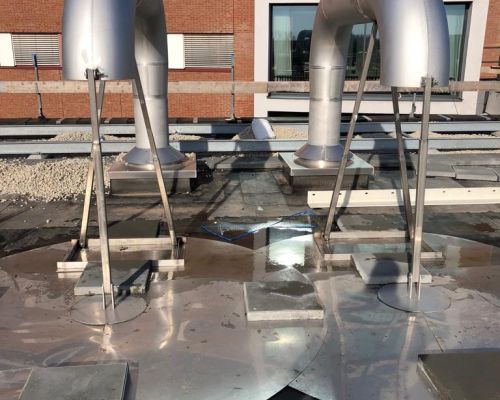

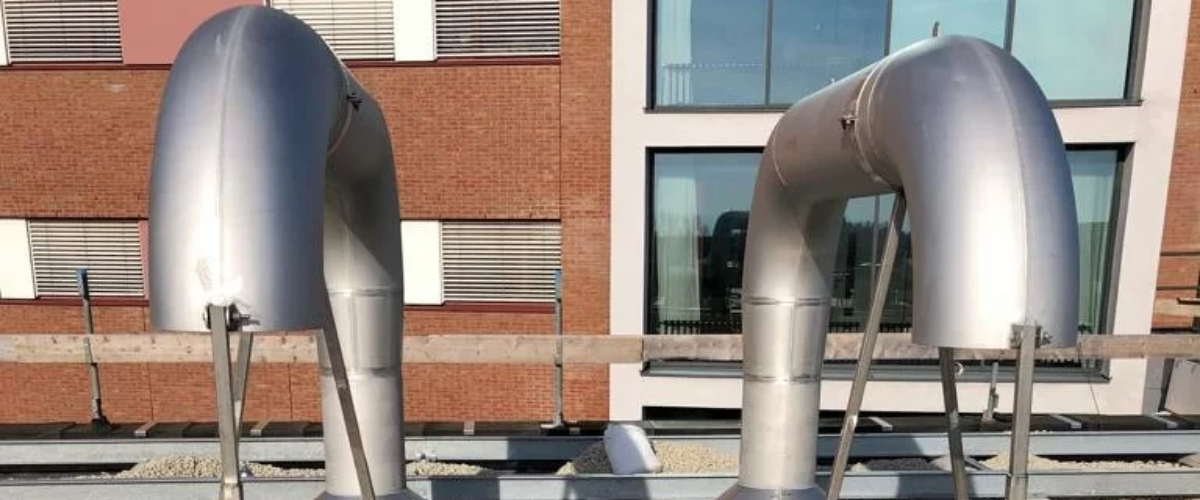

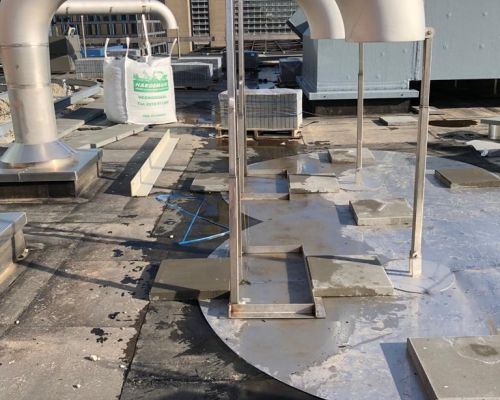

During this proces helium will escape from the cryogen bath extremely rapidly, and since helium can reach temperatures around -269 °C a special quench pipe ducting system has to be constructed to guide the gasses safely outside.
Challenge
- Make sure the quench pipe system is up to all regulations set by the government
- Create a ducting system strong enough to absorb the pressure difference of an MRI emergency stop
- Create a ducting system that can expand significantly
Solution
Designed a system that was both stong enough and flexible enough to handle MRI emergency stops
Facts
Customer:
ULC Verwarming B.V.
Location:
Utrecht, the Netherlands
Benefits
- The hospital of Deventer does not have to worry about the pressure of an emergency stop of their MRI
- Quench pipe system is up to all regulations set by the government
Solutions:
Quench piping
